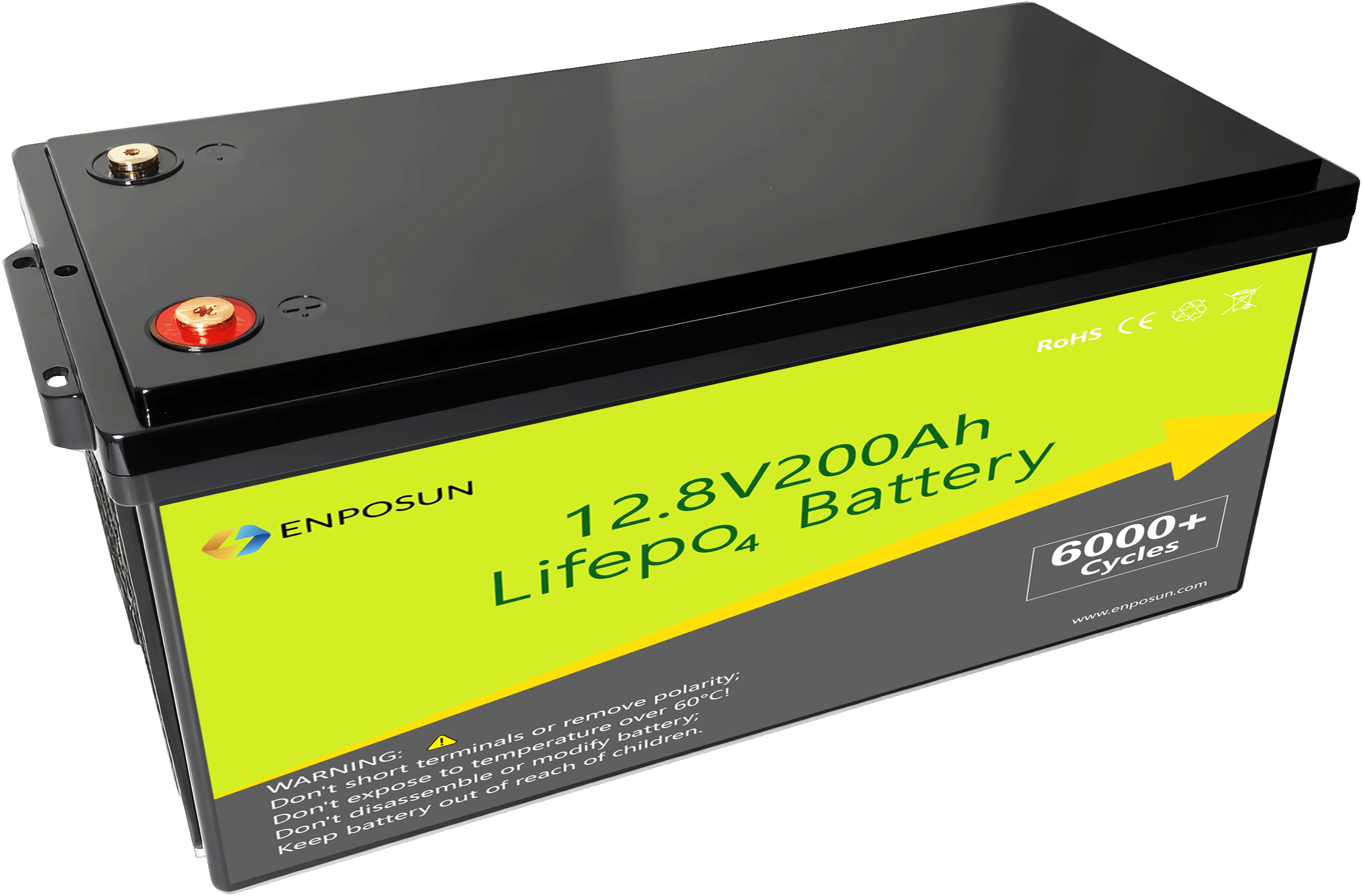

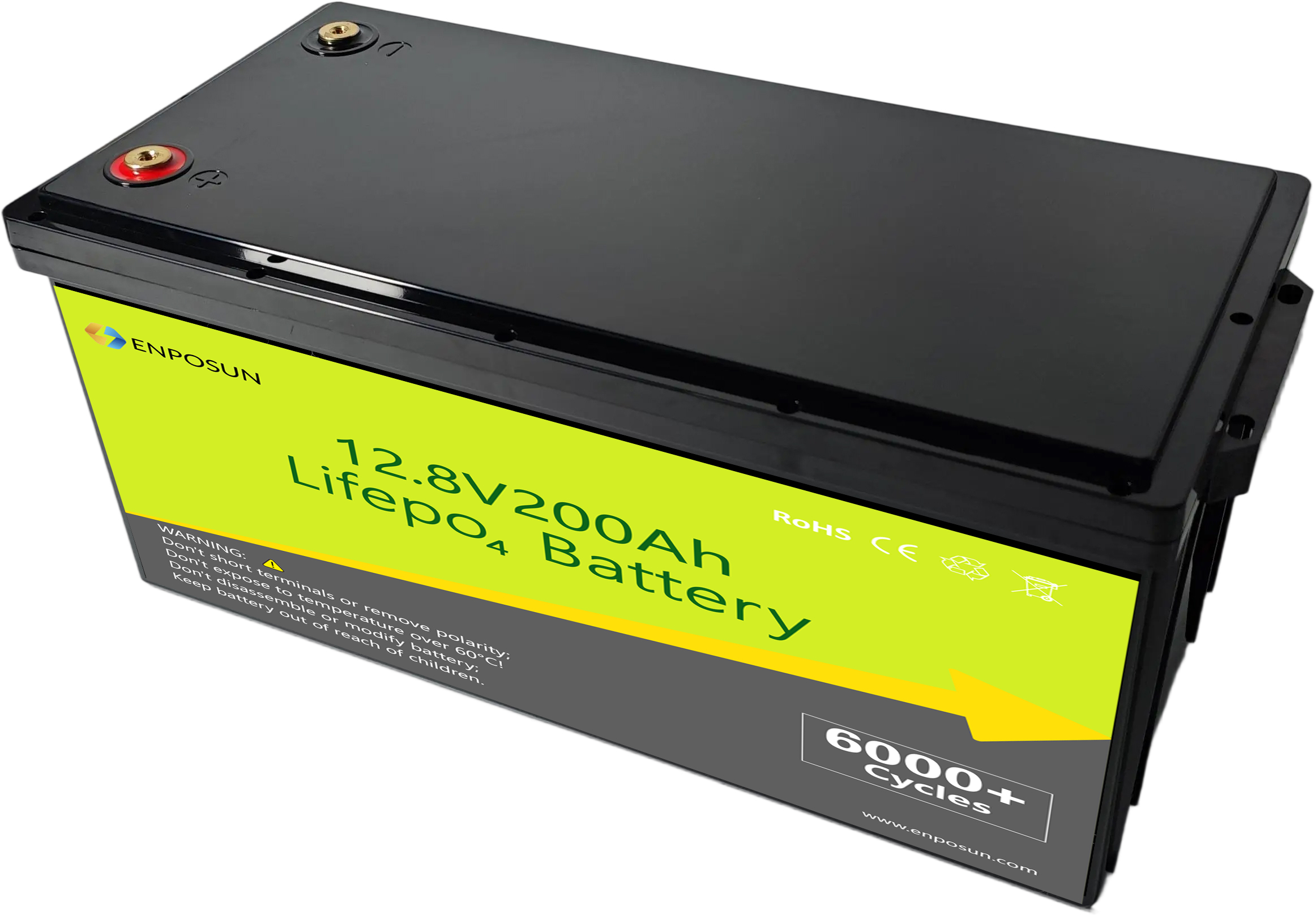

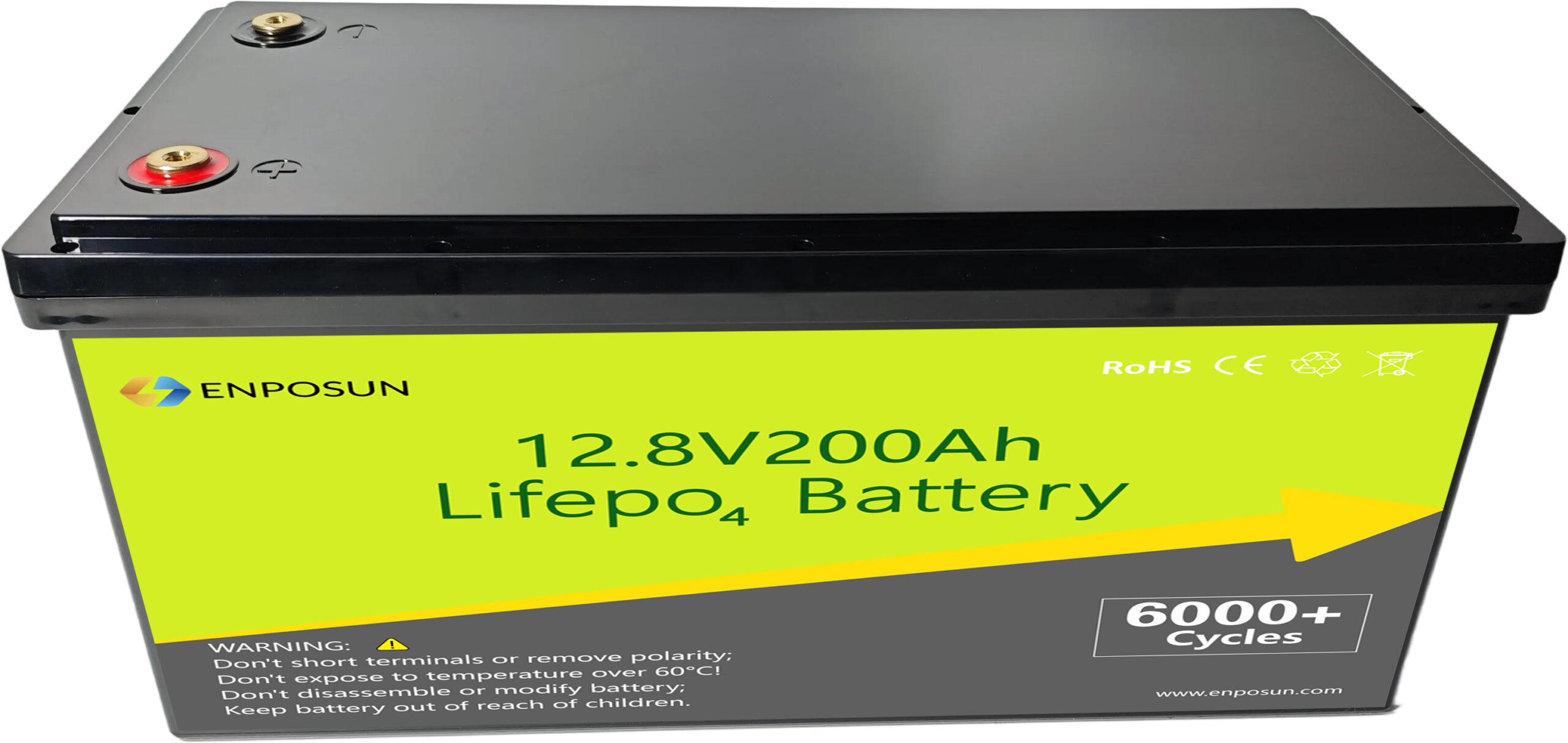

Lifepo4 Battery 12.8v200ah
Features
Specification
Application
Features
- Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
- Replacement for lead-acid battery.
- Wider temperature range:-20℃~60℃.
- Support for Series application expansion (up to 25.6V) or two in parallel.
Specification
Nominal Voltage | 12.8v |
| Nominal Capacity | 200ah |
| Energy | 2560wh |
Nominal Internal Resistance | ≤0.5mΩ |
Cycle Life | >5000(80% DOD, 1C/1C) |
Maximum continuous | 1 C |
Compound mode | 4S2P |
Standard charging current (A) | 1C |
Charging stop voltage (V) | 14.6V |
Discharge cut-off voltage (V) | 10V |
Application
