Features
Specification
Application
Features
Battery Type: Lithium iron Phosphate (LFP)

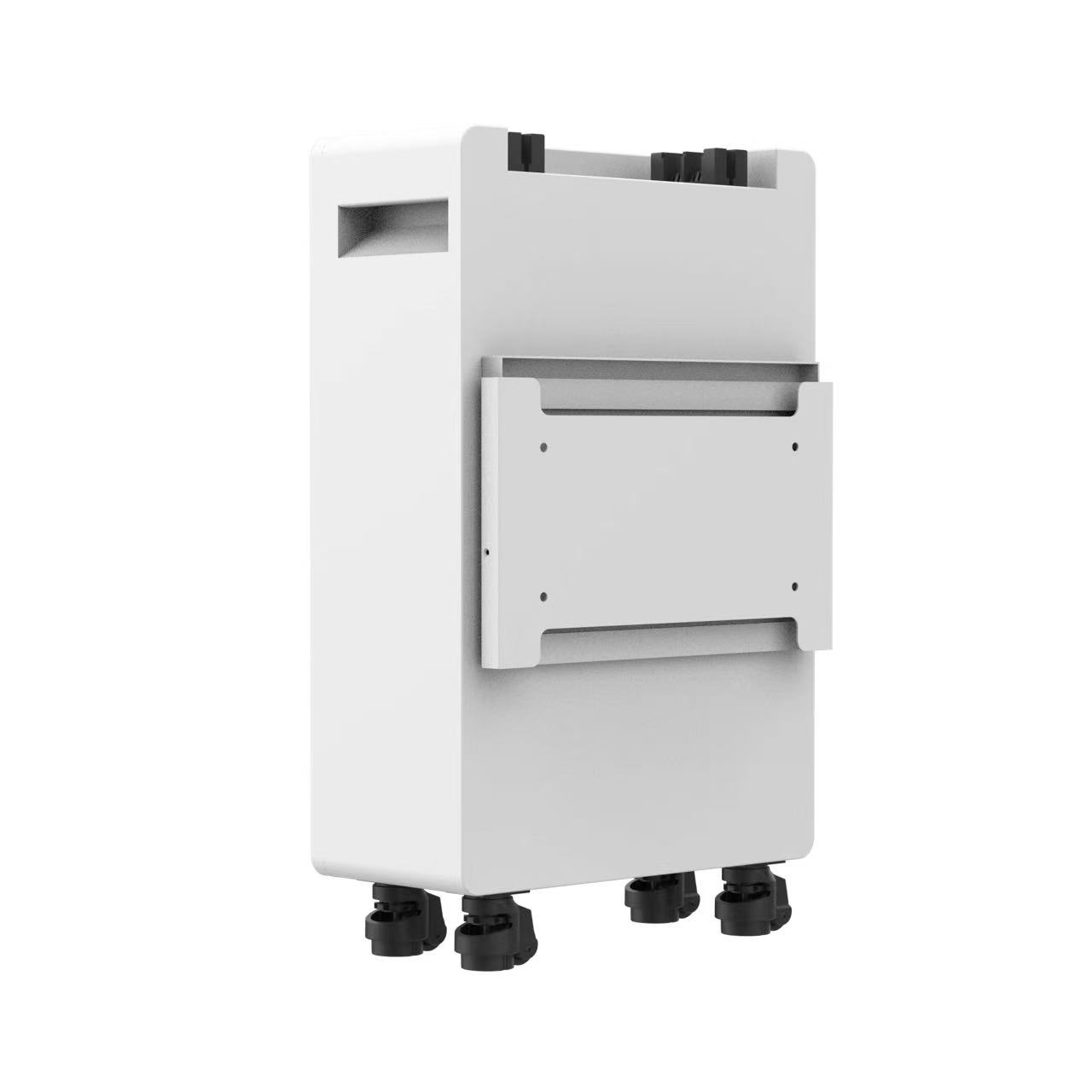

Installation: Wall-mounted.
BMS Monitoring Parameters BMS: SOC, System voltage, current, cell voltage cell temperature, PCBA temperature measurement.

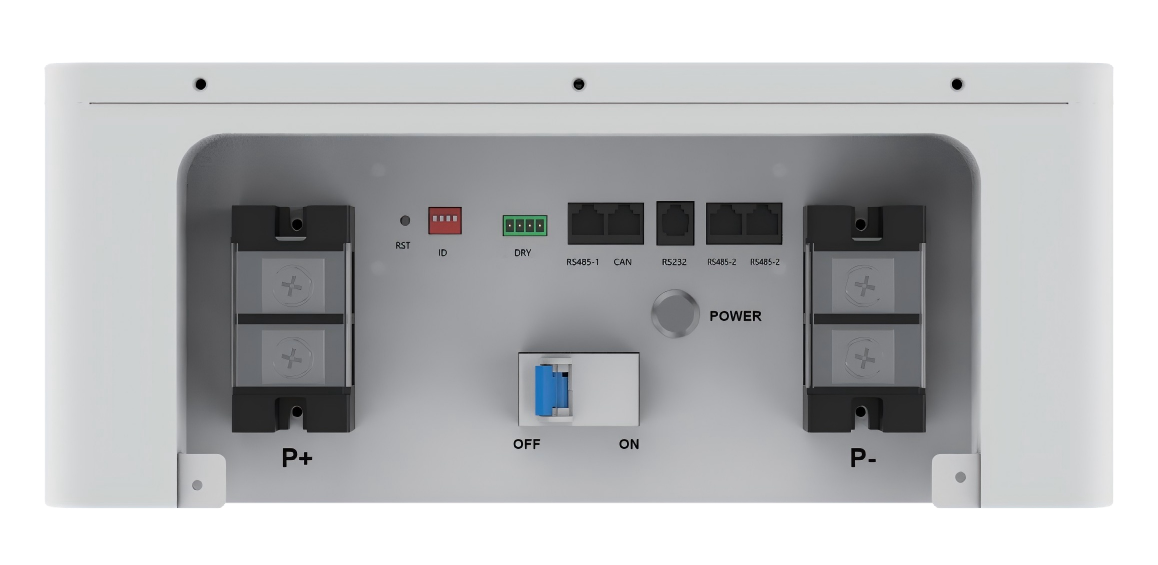

Support communication protocol :RS232 RS485,CAN
Design Life: >10 years.
Certification:CE、UN38.3、UL1973(Cell) 、IEC62619 (Cell).
Charging operating temperature range:0°C~55°C;
Discharge working temperature range:- 20°C~55°C.
Specification
Product name | ESWM-51.2V 100ah |
Voltage | 51.2V |
Capacity | 100AH |
Weight | 48KG |
Size | 660*480*220MM |
Cycle life | >6000(80% DOD@0.5C) |
Application
- Energy storage system;
- Solar application;
- Telecom application;
- Emergency lighting;
- Medical equipment.
